A datalogger that calculates daily light integral (DLI) and other sensor graphical summaries at your fingertips. Connects directly to several Apogee sensors. Features live meter mode, stand-alone datalogging, and graphing using our free Apogee Connect App for iOS and Android.
The new Apogee microCache (µCache) is a rugged, battery-powered,Bluetooth®低能量，单传感器数据记录器，适用于多个Apogee的传感器。当用作无线现场记录设备时，本机可以使用内部电池存储9个月的1分钟数据。可以使用适用于iOS和Android设备的免费Apogee Connect应用程序在移动设备上查看数据，即将推出Wi-Fi网关。Apogee Connect功能Live仪表模式，实时图形，以及将数据集发送到计算机的能力。
查看实时数据
使用Apogee Connect应用将实时数据传输到IOS和Android设备。
Datalogging Mode
存储超过400,000个条目，（9个月的1分钟数据），具有可编程采样和日志记录间隔。
高分辨率读数
处理器具有24位模数转换器。
坚固的住房
IP67 rated for harsh environments.
Compatible with Multiple Apogee Sensors
Currently connects with the SQ-110 Original Quantum, SQ-500 Full-spectrum Quantum, SQ-620 Extended Range PFD sensor, SQ-640 Quantum Light Pollution sensor, SP-700 Albedometer, S2-141 PAR-FAR sensor, S2-131 Red - Far-red sensor, SP-110 Silicon-cell Pyranometer, SP-510-SS and SP-610-SS Thermopile Pyranometers, SU-200 UV-A sensor, and SI-100 Series Infrared Radiometers.
Warranty and Support
The µCache is backed by a 4 year warranty and outstanding customer support.
Measuring PAR with the Apogee µCache Logger

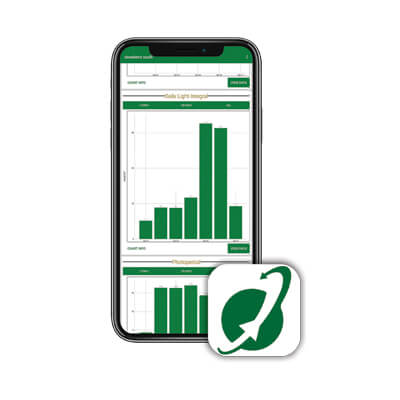

The free Apogee Connect app provides useful interfaces for several Apogee Sensors

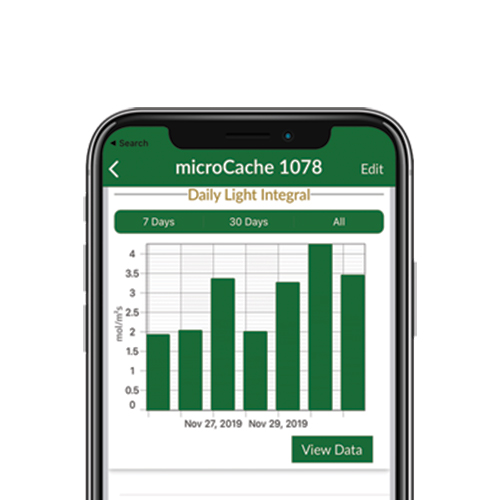

量子传感器：测量DLI，光周期，峰强度 Shows real-time readings, graphs, and tables of photosynthetic photon flux density (PPFD), daily light integral (DLI), and photo period. Includes adjustable darkness offsets, an optional immersion correction factor, and custom sample averaging settings.
PAR-FAR and Red - Far-red Sensors: Measure PFD, PAR - FAR, Percent Far-red, Red - Far-red Ratio App displays individual readings of PAR, Red, and Far-red, depending which sensor is connected. Displays real-time values and graphs and data-tables of recorded Photon Flux Density, PAR/Far-red, Percentage Far Red, the Red - Far-red ratio, Daily Light Integral, and Photoperiod.
Infrared Radiometers: Target Canopy Temperature Shows instantaneous and logged target temperature, sensor body temperature, and allows input of custom calibration coefficients.
Pyranometers.: Global Solar Radiation Shows instantaneous and daily total of Global shortwave radiation. Can connect to upward and downward pyranometer models for albedometer readings.
